DROID Dexterous robot with force sensitive AI-based teaching
The DROID robot system is a dexterous robot arm and hand combination inspired by the human model. The 5-finger gripper enables operations in environments designed for humans. A wearable force-feedback controller allows intuitive teaching of the robot by demonstrating the task without the need for programming skills. The robotic hand has an AI-assisted depth-sensitive sense of force and allows direct force transmission to the human user using a force feedback control system. This allows fast teaching and handling of sensitive objects and enables safe interaction with humans in collaborative operation. Due to an integrated camera system and onboard AI processing the robot can adapt to differences in object characteristics and to changes in the work area.
- Designed after the human model
- Intuitive teaching
- no programming skills needed
- AI enables fast learning
- RS485 Communication Bus
- Force sensing in each joint
- Gripping of sensitive objects
- Lightweight and Durable
Available on request. Please contact us for more information

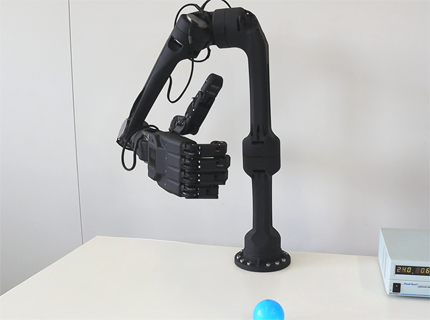

Product Images
Specifications
1-Arm | 2-Arm | |
Weight | 5.5 kg | 10 kg |
Height | 65 cm | 65 cm |
Width | 24 cm | 38 cm |
Actuators | 3x AeonDrive ADx750 2x AeonDrive ADx350 2x AeonDrive ADx250 11x Finger Actuator | 5x AeonDrive ADx750 4x AeonDrive ADx350 4x AeonDrive ADx250 22x Finger Actuator |
Degrees of Freedom | 6 DoF per arm 11 DoF per hand 1 DoF body | |
Sensors | ||
Optical | RGB camera + depth | |
Position | Encoder in each actuator | |
Force | Torque sensing in each actuator |
